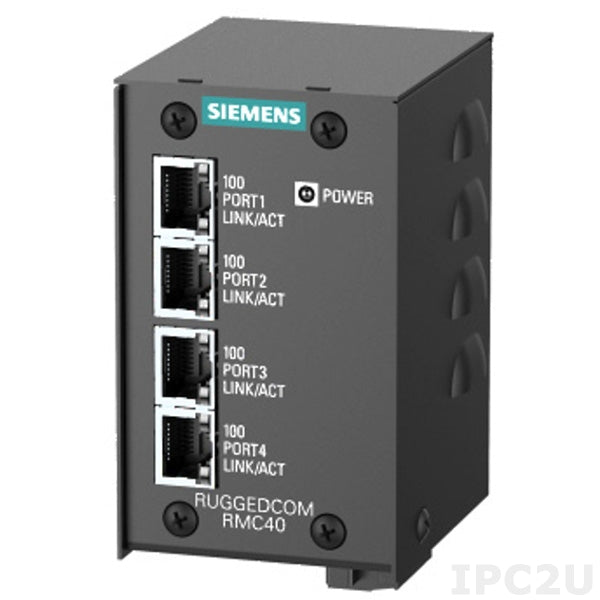

RUGGEDCOM-RMC40 Industrial Unmanaged Fast Ethernet Media Converter 2x10/100Base-TX, 1x100Base-FX (SC/ST) or 2x10/100Base-TX, 2x100Base-FX (MTRJ/LC) or 4x10/100Base-TX, Distance up to 90km, 24/48VDC or 88..300 VDC / 85..265 VAC, Wide Temp. -40.. 85C
Network Adapter
Total Ethernet
4
10/100 Mbit/s
4
Type 10/100 Mbit/s
2xSC, 2xRJ-45, Single-mode
Cooling
Type
Fanless
System Power Input
Input Voltage DC
18~36 V
Power Consumption
5 W
Operating Conditions
Temperature
-40~85 °C
Humidity
0~95 %
Storage Conditions
Temperature Range
-40~80 °C
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Wall, DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
58 mm
Height
109 mm
Depth
94 mm
Standards and Certifications
Certifications
CE/FCC
Safety
UL 60950-1, CSA
EMS
EN 61000-6-2, EN 61000-6-4
EMI
EN 61000-6-4, EN 55022 Class A, FCC Part 15 Subpart B Class A
