DB-24POR/DIN

DB-24POR/DIN

ICP DAS
Qiymət istəyə görə

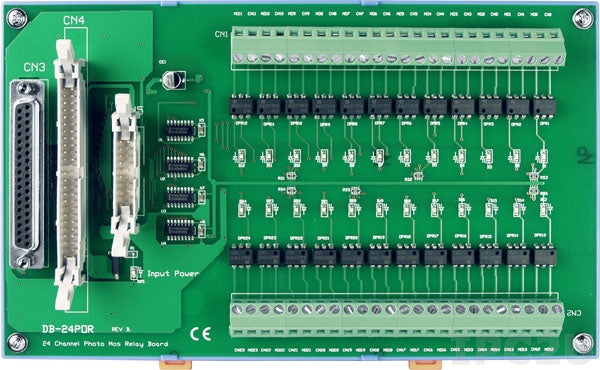

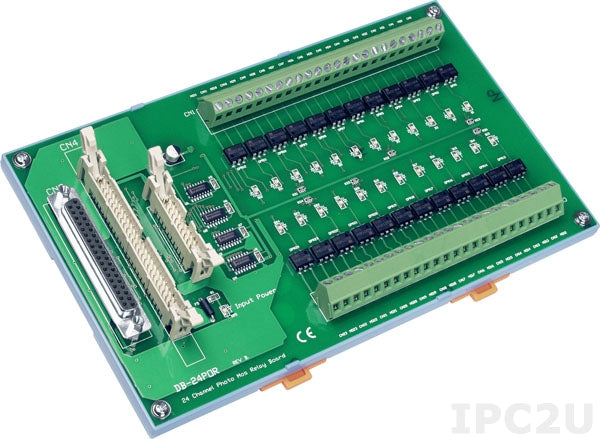

Isolated 24 Channels Photo MOS Relay Daughter Board, Opto-22 Compatible, DIN-Rail Mounting

Construction
Mounting Configuration DIN-Rail mount

Digital Output
Total channels of digital output 24
Type PhotoMos relay
Relay (Form A) 24
Contact rating of relay (Form A) 0.13A@350V AC

System Power Input
Input Voltage DC 5~5 V
Current 300 mA

Operating Conditions
Temperature 0~60 °C
Humidity 5~90 %

Dimensions and weight
Width 213 mm
Depth 132 mm
